With Air Cooling Connector for 35Khz Ulta Spot Welding Device
Description:
The 35K ultrasonic spot welding system has a novel portable structure design, which is quick and convenient to operate and move. It is also equipped with a fully automatic tracking system, no need to manually tune the frequency. Strong power, up to 1200 watts, can work continuously or pulsed, especially suitable for the melting point of 1-15mm in diameter. Unique value design, compact and light, suitable for operation.
Specifications:
| Item No | QR-W35AY |
| Power | 800W |
| Generator | Digital generator |
| Frequency | 35KHZ |
| Voltage | 220V or 110V |
| welding head | Titanium |
| Gross weight | 6Kg |
Parameters:
| Classification | Pistol Type | Pen Type |
| Frequency
(Khz) | 35 | 28 | 28 | 28 | 20 | 28 | 28 | 28 |
| Power(w) | 500 | 300 | 700 | 800 | 900 | 300 | 700 | 800 |
| Welding Head | <10mm | <10mm | <10mm | <12mm | <12mm | <10mm | <10mm | <12mm |
| Dia of shell | 51mm | 51mm | 51mm | 64mm | 64mm | 40mm | 45mm | 60mm |
| The handles size | 100mm*45mm*32mm | — | — | — |
| Weight | 0.5kg | 0.5kg | 0.5kg | 1.2kg | 1.2kg | 0.4kg | 0.5kg | 1.0kg |
| Digital Generator | ● | - | ● | ● | ● | ● | - | ● |
| Analog Generator | ● | ● | ● | ● | ● | ● | ● | ● |
| Application | ABS, HIPS,PMMA,MPPO | PVC,PP,PE | Aldehyde-resin, PC | PC,PSU,PA | Nylon, PE,PBT | PVC,PP,PE | Aldehyde-resin, PC | PC,
PSU,PA |
| Welding Type | Rivet Welding, Spot Welding, Embossed Welding |
Characteristics:
1. Optimize thermal welding defects (avoid yellowing, edge burning and no welding voids)
2. Applied to plastic products, it is especially suitable for welding HDPE, PP, PE, ABS, PVC, PC, EVA, PMMA, PS, PBT, PETG and other plastics. It is also used for riveting, cutting, sealing and spotting of fiber cotton, chemical fiber, and metal hardware. Welding, embossing, positioning, fusion welding, etc. are particularly effective.
3. It can replace riveting, spot welding, embedding and removal process according to customer needs. Compared with other traditional processes (such as adhesive, hot welding or screw connection), it has the advantages of high production efficiency, good welding quality, environmental protection and energy saving .
4. Fully digital circuit control, using advanced DSP control system, strong anti-interference ability.
5. With color touch screen setting, manual mode and semi-automatic mode can be set to work
6. The chassis uses advanced all-digital integrated circuits, the overall weight is 8 kg, not the old 10-15 kg old machine, using imported power tubes, more power
7. The ultrasonic generator has the functions of automatic frequency search and automatic frequency tracking, with a wide frequency range.

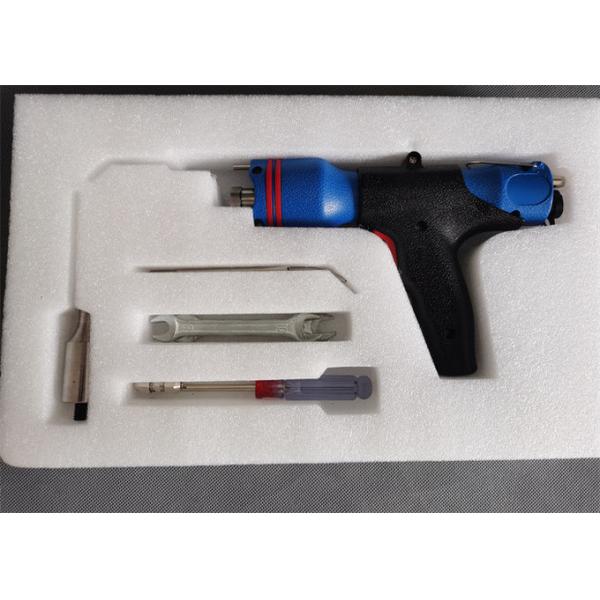

8. Hand-held type can be: pistol type (aluminum alloy shell), straight handle type (nylon shell)
9. Ergonomic design, easy to control and use, easy to operate
10. Dedicated four-hole aviation plug connector, high-quality connection, safe and firm to avoid loose connection
11. The welding mold can be changed quickly, just 2 ordinary adjustable wrenches can be replaced
With Air Cooling Connector for 35Khz Ulta Spot Welding Device
